Diptera.info :: General Diptera forums :: Overviews
Who is here? 1 guest(s)
 Print Thread
Trichoceridae, wing venation
jorgemotalmeida
#1 Print Post
Posted on 09-10-2007 11:59
User Avatar

Member

Location: Viseu - PORTUGAL
Posts: 9296
Joined: 05.06.06

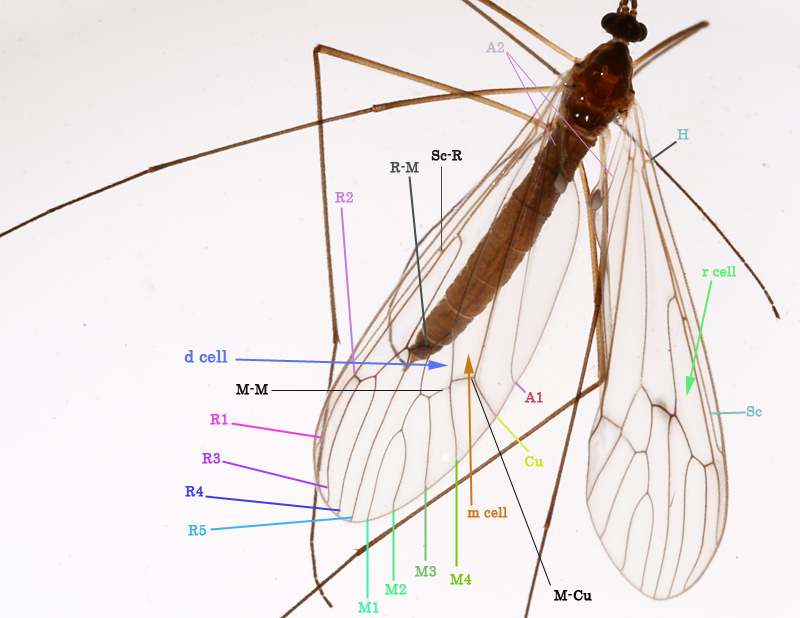

Trichoceridae - Trichocera regelationis


VEINS


Subcosta vein - Sc

Radial veins - R1, R2, R3, R4, R5

Medial veins - M1, M2, M3, M4

Cubital vein - Cu

Anal veins - A1, A2



CROSSVEINS


Humeral crossvein - H crossvein

Subcosta-Radial crossvein - Sc-R crossvein

Radial-Medial crossvein - R-M crossvein *

Medial-Medial crossvein - M-M crossvein

Medial-Cubital crossvein - M-Cu crossvein



CELLS


radial cell - r cell

medial cell - m cell

discal cell - d cell


Note that usually the veins are written in UPPERCASE letters, and cells in lowercase.

* This Trichocera regelationis has a dark cloud on R-M.
jorgemotalmeida attached the following image:


[190.45Kb]
Edited by jorgemotalmeida on 09-10-2007 22:16

http://www.flickr.com/photos/superegnum
kitenet
#2 Print Post
Posted on 10-10-2007 20:31
User Avatar

Member

Location: Buckinghamshire, UK
Posts: 118
Joined: 04.05.06

Excellent photo, thanks Jorge Smile (and also to Tony et al. for the others in this series, they are a brilliant teaching resource).

Martin
Martin Harvey

http://kitenet.co.uk/wp/
conopid
#3 Print Post
Posted on 10-10-2007 20:43
User Avatar

Member

Location: United Kingdom
Posts: 1039
Joined: 02.07.04

Yes bravo, I have terrible trouble remembering all the morphological terminology. These photos really are invaluable in overcoming these problems.Smile
Nigel Jones, Shrewsbury, United Kingdom

jorgemotalmeida
#4 Print Post
Posted on 10-10-2007 21:52
User Avatar

Member

Location: Viseu - PORTUGAL
Posts: 9296
Joined: 05.06.06

thanks. I'm preparing more other series. Smile
I think Tony T had a great idea to put OVERVIEWS section.

http://www.flickr.com/photos/superegnum
