 Tachinidae
|
|
| Tony T |
Posted on 02-09-2007 16:49
|
 Member Location: New Brunswick, Canada Posts: 663 Joined: 08.02.07 |
1 September 2007, NB, Canada. Length: 8mm To me, looks like a 'typical' tachinid with large spines; not like the big-headed, no spines Phasia sp. of my last post
Tony T attached the following image:  [42.09Kb] |
|
|
|
| Zeegers |
Posted on 02-09-2007 17:16
|
|
Member Location: Soest, NL Posts: 18823 Joined: 21.07.04 |
I agree. Very difficult for me to go any further. The bend in vein M is rather smooth and the praealar bristle is short, so Blondeliini is an option. Theo |
|
|
|
| Tony T |
Posted on 02-09-2007 21:47
|
|
Member Location: New Brunswick, Canada Posts: 663 Joined: 08.02.07 |
Thanks Theo, that's far enough. I'm concentrating on phtographing and keeping all the flies I can catch and have time to process during the summer. Eventually I will get around to looking at them closely to try and get some level of identification. Your comments, and those of others, are great places for me to start and will save me lots of time and frustration. I realize that your ID are somewhat tentative based solely on photographs of "New World" species. I do appreciate your comments. |
|
|
|
| conopid |
Posted on 02-09-2007 22:39
|
 Member Location: United Kingdom Posts: 1039 Joined: 02.07.04 |
Tony - magnificent photography. HOW do you achieve such brilliant results?
Nigel Jones, Shrewsbury, United Kingdom |
|
|
|
| Tony T |
Posted on 02-09-2007 23:03
|
|
Member Location: New Brunswick, Canada Posts: 663 Joined: 08.02.07 |
Thanks for the compliment. This image is 43K, you should see the original 24MB image .This is a stacked image of about 15 images, each at a slightly different focus. I stack them using Helicon Focus. I use a Nikon digital camera, a manual focus 105mm Nikon Micro lens coupled to a 52.5mm extension tube (PN11). For very small flies I use 2 PN11's + a 1.4x teleconverter. For lighting, a single Nikon SB800 flash. Pinned fly is surrounded by tube of white paper, flash aimed at ouside of this tube. |
|
|
|
| crex |
Posted on 03-09-2007 05:45
|
 Member Location: Sweden Posts: 1996 Joined: 22.05.06 |
Wonderful photos. Thanks for the technical info. You should publish a coffee table book with all these detailed fly photos |
|
|
|
| Philippe moniotte |
Posted on 03-09-2007 09:41
|
 Member Location: Heron, Belgium Posts: 860 Joined: 14.10.05 |
Yes indeed wonderful, and thanks for the explanation. I have the exact same equipment and feel like giving it a try (I don't collect, just shoot in the field, but I'll find some material to experiment with). Just one question : what exactly do you mean by 'the flash pointing to the outside of the paper tube " ? Philippe |
|
|
|
| Tony T |
Posted on 03-09-2007 13:40
|
|
Member Location: New Brunswick, Canada Posts: 663 Joined: 08.02.07 |
crex wrote: Wonderful photos. Thanks for the technical info. You should publish a coffee table book with all these detailed fly photos Jorge once asked "why study flies"; for me it's the structures, the detail and the incredible colours - all of which can be appreciated by macro-photography. A book of close-ups would be nice but I think the market for Nearctic Diptera photos would be in the range of 1-5. I will accept credit for technique but the real credit goes to Nikon for their incredible lenses, quite capable of resolving hairs and spines on a fly, and to Helicon Focus that magically can combine many, basically out of focus images, into 1 sharp 3-dimensional image. I have stacked (combined) up to 30 such images! Attached is a blow-up of this fly's head Tony T attached the following image:  [103.58Kb] |
|
|
|
| crex |
Posted on 03-09-2007 15:25
|
|
Member Location: Sweden Posts: 1996 Joined: 22.05.06 |
I imagine you hardly need the specimen with such good detail reproduction. You can archive that fly in the darkest corner of the collection. I would like to try this technique myself. I think I know how you set this up, but I'm not sure how you aim your flash and how large the paper tube should be. Do you have a photo of your setup? |
|
|
|
| Tony T |
Posted on 03-09-2007 18:46
|
|
Member Location: New Brunswick, Canada Posts: 663 Joined: 08.02.07 |

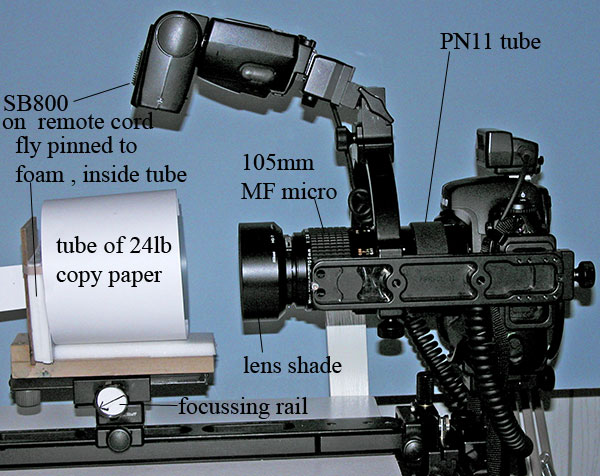

Philippe moniotte wrote: Just one question : what exactly do you mean by 'the flash pointing to the outside of the paper tube " ? Philippe Crex wote: I would like to try this technique myself. I think I know how you set this up, but I'm not sure how you aim your flash and how large the paper tube should be. Do you have a photo of your setup? The paper tube acts simply as a flash diffuser. It can be made from 8.5 x 11" or 8.5 x 14" regular office copy paper. By aiming the flash at the tube the entire tube acts as a light source so that the light comes from all directions. Otherwise you will most surely get harsh shadows if you aim the flash directly at the fly. The SB800 has a built in diffuser and I will sometimes use this as well as the paper tube. Note that the flash is "off camera", has to be to get the flash above the tube. It is important not to alter focussing using the lens; one must either move the entire camera or the fly. I keep the camera solid and move the fly (actually I move the entire fly holder + paper tube). Thus you need some sort of focussing rail that will move in 1mm or less increments. Also a good idea is to have the camera and the fly-holder on the same rigid 'optical bench'. I use various combinations of 105mm micros lens, PN11 tubes, 1.4 teleconverter, Nikon 4T close-up attachment lens. Tony T attached the following image:  [79.48Kb] |
|
|
|
| crex |
Posted on 03-09-2007 18:51
|
|
Member Location: Sweden Posts: 1996 Joined: 22.05.06 |
Thanks Tony. Impressive setup |
|
|
|
| Tony T |
Posted on 03-09-2007 19:34
|
|
Member Location: New Brunswick, Canada Posts: 663 Joined: 08.02.07 |
For an alternate set-up for super macro take a look at this page by "The Master" of this technique HERE |
|
|
|
| jorgemotalmeida |
Posted on 03-09-2007 19:40
|
 Member Location: Viseu - PORTUGAL Posts: 9295 Joined: 05.06.06 |
it looks like a machine of war.   |
 |
|
